Feature

Specification

SCSN-W131
SCSN-W132
SCSN-W134

Serial Interface

DB-9M connector

■

Terminal Block connector

SCSN-131

Serial Port Mode: RS-232, RS-422, RS-485(2-wire), RS-485(4-wire)

■

Baudrate (50bps to 921.6Kbps)

■

Flow Control (None, RTS/CTS, Xon/Xoff)

■

Data Packing Delimiters

■

LAN Interface

Ethernet 10/100BaseT, Auto-detect

■

Wireless LAN (IEEE 802.11b/g)

■

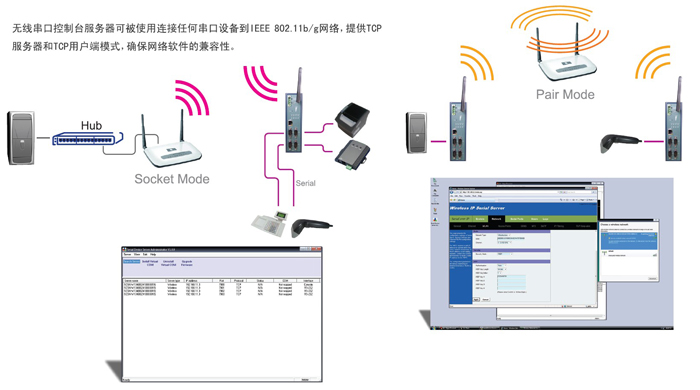

Communication Modes

TCP Server, TCP Client, or UDP

■

Socket mode

■

Virtual COM mode (Virtual COM drivers for Windows 2000/2003/XP/Vista)

■

Linux/Unix Virtual TTY driver for Linux/Unix operating system

Paired Mode

■

WinSock Lib. API

■

Network Protocols

TCP, UDP, IP, ARP, ICMP, HTTP, Telnet, SSH, DHCP, SMTP, DDNS, SNTP, SMTP, SNMP

■

UDP Multicast

■

Protocols Relative Function

Client requests connection at Power up or Data arrival

■

TCP keep-alive timeout

■

Serial Inactivity Timeout

■

Multiple TCP Client Connections

8 per port

TCP Probe function

■

Management

Web Pages

■

Console, Telnet, SSH

■

Remote Administrator

■

Security

Password Access

■

IP Address Filtering

■

Wireless Security

WEP, WPA, WPA2

■

TKIP, AES

■

Power & Environment

AC Input

24 VAC

DC Input

9 - 48VDC

Redundant Power Input

■

Operating Temperature

0 to 55 °C

(32 to 131°F)

Operating Humidity

5 to 95% RH

Certifications

CE, FCC

■

Mechanical

Rugged IP30 Metal Case

■

DIN rail mount, Panel mount, or Desktop

■

Dimensions(mm)

46 x 145 x 110

46 x 170 x 110
