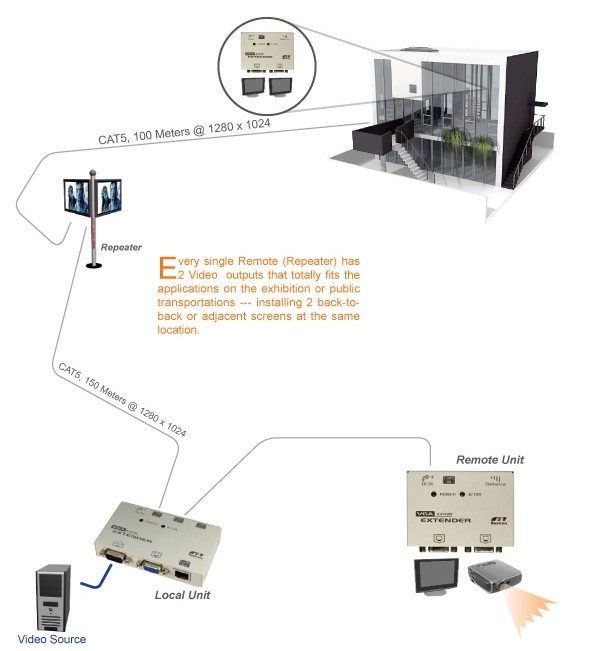

VGA+Audio

CAT5 Extender

LOCAL UNIT

REMOTE UNIT

EVA-124L

EVA-128L

EVA
-12L

EVA
-D12L

EVA-02R

ERVA-124L

ERVA-128L

Purpose

Local Unit for
VGA + Audio Source

Remote Unit for
VGA + Audio Extension

RJ-45 Connector

4 Extension Output
( VGA + Audio)

8 Extension Output
( VGA + Audio)

1 Extension Output
( VGA + Audio)

1 Extension Input
( VGA + Audio) x1

Cable Between Units

CAT5, CAT5e and CAT6

Max. Distance

150 Meters*

VGA Input Port

Stereo Jack (Female) x 1

N/A

Audio Input Port

Stereo Jack (Female) x 1

N/A

VGA Output Port

HDB15 (Female) x 2

Audio Output port

3.5mm Audio Jack (Female) x 2

Equalizer Selector

N/A

4-Position Slide Switch

EDID Copy Button

N/A

X 1

N/A

Status Indicator

Power (Green) x 1, Active (Yellow) x 1

Remote Controlle

N/A

N/A

N/A

N/A

Yes

Yes

Operating Voltage

9 ~ 12V DC, 1.5A

9V DC, 600mA
